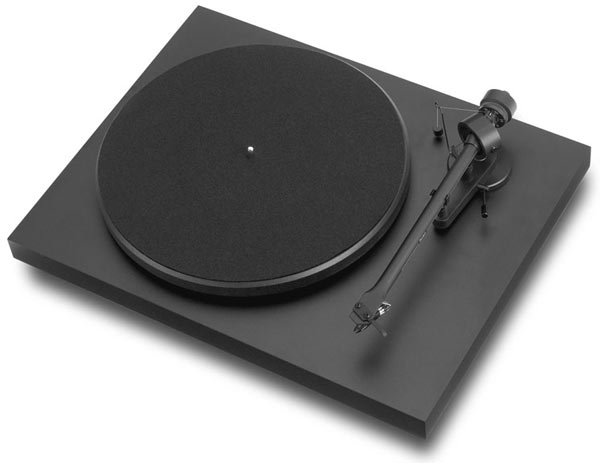

DEBUT III E |
Manual turntable with automatic cut-off and fitted cartridge Ortofon OM 5E |
Good sound from sound technology
- Tonearm bearing comprises inverted hardened stainless-steel points and sapphire thrust-pads
- Headshell and armtube formed from a single aluminium workpiece, rotation allows adjustment of needle azimuth despite fixed headshell
- Steel platter with felt mat
- Low-tolerance chrome-plated stainless-steel axle runs on a polished ball bearing in a brass bearing housing
- Motor decoupled to reduce vibration
Features
- Supplied with Ortofon OM 5E cartridge fitted
- Pro-Ject 8.6 tonearm
- Nominal speeds 33 / 45 r.p.m.
- Opto-electronic end-of-record switch-off
- Dust cover
- Available in matt black and silver
|
|
| Technical data |
Pro-Ject Debut III E |
| Fitted cartridge |
Ortofon OM 5E |
| Amplifier connection |
MM-input |
| Nominal speeds |
33 / 45 r.p.m. |
| Automatic cut-off |
opto-electronically controlled |
| Dust cover |
yes |
| Tonearm |
Pro-Ject 8.6 |
| Effective tonearm length |
8,6 " (218,5mm) |
| Effective tonearm mass |
9,5g |
| Overhang |
18,5mm |
| Supplied counterweight |
cartridge weight 3,5 - 5,5g |
| Optional counterweight |
cartridge weight 6 - 9g |
| Downforce range |
10 - 30mN |
| Speed variance |
?0,8 % |
| Wow and flutter |
?0,12 % |
| Signal to noise |
-65dB |
| Platter weight/diameter |
1,3kg/280mm |
| Power supply type |
Mains-fed outboard power supply
220 - 240V, 50 cycles or 100 - 110V, 60 cycles |
| Output voltage |
16V/500mA AC |
| Power consumption |
2W |
| Depth (lid open) |
400mm |
| Height (lid open) |
370mm |
| Dimensions (lid open) |
415 x 365 x 405mm |
| Dimensions (lid closed) |
415 x 118 x 320mm |
| Weight |
5,5kg |
|
|
