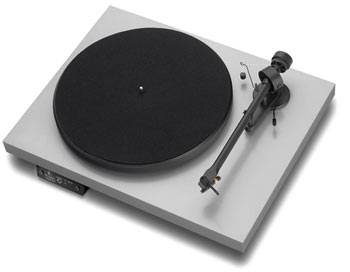

DEBUT III / PHONO SB
Manual turntable with fitted cartridge Ortofon OM 5E, electro mechanic speed change and integrated MM phono pre-amplifier
Good sound from sound technology
Tonearm bearing comprises inverted hardened stainless-steel points and sapphire thrust-pads
Headshell and armtube formed from a single aluminium workpiece, rotation allows adjustment of needle azimuth despite fixed headshell
Steel platter with felt mat
Low-tolerance chrome-plated stainless-steel axle runs on a polished ball bearing in a brass bearing housing
Motor decoupled to reduce vibration
Features
Supplied with Ortofon OM 5E cartridge fitted
Pro-Ject 8.6 tonearm
Electronic speed change for 33 / 45 r.p.m.
Mechanic speed change for 78 r.p.m.
Equipped with internal phono pre-amp (MM)
Dust cover
Available in matt black and silver
Technical data
Pro-Ject Debut III/Phono SB
Fitted cartridge
Ortofon OM 5E
Amplifier connection
MM-input
Nominal speeds
33 / 45 / 78 r.p.m.
Electronic speed change
33 / 45 r.p.m.
Mechanic speed change
78 r.p.m.
Internal phono pre-amplifier
yes
Dust cover
yes
Tonearm
Pro-Ject 8.6
Effective tonearm length
8,6 " (218,5mm)
Effective tonearm mass
9,5g
Overhang
18,5mm
Supplied counterweight
cartridge weight 3,5 - 5,5g
Optional counterweight
cartridge weight 6 - 9g
Downforce range
10 - 30mN
Speed variance
?0,8 %
Wow and flutter
?0,12 %
Signal to noise
-65dB
Platter weight/diameter
1,3kg/280mm
Power supply type
Mains-fed outboard power supply
220 - 240V, 50 cycles or 100 - 110V, 60 cycles
Output voltage
16V/500mA AC
Power consumption
6,5W
Depth (lid open)
400mm
Height (lid open)
370mm
Dimensions (lid open)
415 x 365 x 405mm
Dimensions (lid closed)
415 x 118 x 320mm
Weight
6kg
Technical data
phono pre-amplifier
Output voltage
160mV/1kHz at 4mV/1kHz input
Input impedance
47kohms/100pF
Noise floor
-88dB
RIAA-equalisation curve accuracy
20Hz - 20kHz / max. 0,5dB
