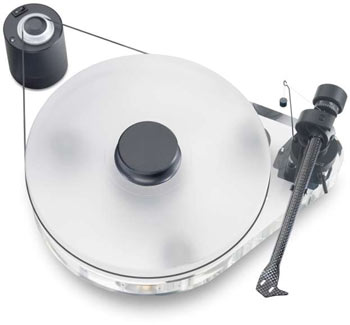

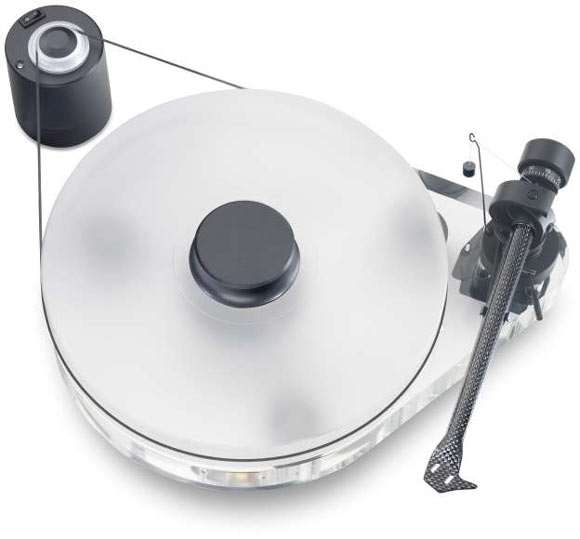

RPM 9.1 X |
|
Good sound from sound technology
- Tonearm bearing comprises inverted hardened stainless tips in ABEC7 spec ballraces
- Headshell and conical armtube formed from a single carbon fibre workpiece
- Armtube allows adjustment of needle azimuth despite fixed headshell
- Vertical tracing angle adjustable
- Acrylic platter with perimeter belt drive and brass record puck
- Inverted main bearing with ceramic thrust-pad
- Central metal block optimises centre of gravity
- Sorbothane-damped aluminium cones
- Drive motor housed in separate base
Features
- Pro-Ject 9cc tonearm
- Nominal speeds 33 / 45 r.p.m
- Record puck
- Gold-plated RCA phono sockets
- Dust cover available as optional extra
- Transparent acrylic plinth
- Pro-Ject spirit level supplied
|
|
| Technical data |
Pro-Ject RPM 9.1X |
| Nominal speeds |
33 / 45 r.p.m. |
| Dust cover |
Pro-Ject Cover it optional |
| Record weight |
yes |
| Motor in separate housing |
yes |
| RCA phono sockets |
yes |
| Sorbothane-damped aluminium cones |
yes |
| Central metal block |
yes |
| Tonearm |
Pro-Ject 9cc |
| Carbon-fibre headshell and armtube |
yes |
| Effective tonearm length |
9 " (230mm) |
| Effective tonearm mass |
8,5g |
| Overhang |
18mm |
| Supplied counterweight |
cartridge weight 6 - 10g |
| Optional counterweights |
cartridge weight 8 - 11g
cartridge weight 11 - 15g |
| Downforce range |
10 - 30mN |
| Speed variance |
?0,5 % |
| Wow and flutter |
?0,06 % |
| Signal to noise |
-73dB |
| Platter weight/diameter |
3,5kg/300mm |
| Power supply type |
Mains-fed outboard power supply
220 - 240V, 50 cycles or 100 - 110V, 60 cycles |
| Output voltage |
16V/500mA AC |
| Power consumption |
2W |
| Dimensions |
440 x 180 x 325mm |
| Weight |
10,5kg + motor unit 2kg |
|
|
