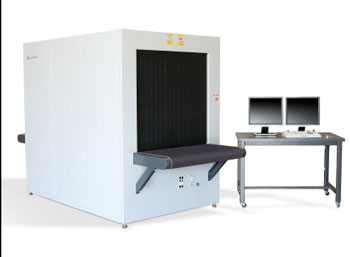

Baggage Screening : XIS-100X

A PC Based System
The XIS-100X is a PC based system that incorporates latest electronic technology with an enhanced modular design. The XIS 100X utilizes a high speed computer that implements advanced complex algorithms in real-time operation.

Ideal solution for the screening of large size luggage, parcels
The XIS 100x is designed and developed to be the ideal solution for screening large size luggage, parcels and boxes for airport, government, post office and commercial applications. The tunnel opening of 1,016mm (40") wide by 1,016mm (40") high is specially designed to scan most parcels and large size luggage and clearly view them through a high resolution imaging and display system.

Imaging Characteristics
• Black & White, Reverse Monochrome, & Pseudo Color
• Dual Energy Imaging System
• Geometrical Distortion Correction
• Color to Gray Scale Imaging
• Programmable Zoom 2X to 32X
• Edge Sharpening
• Programmable Penetration Levels
• Automatic Z measurement
• Operator Training Program
• Density Alert
• Organic & Inorganic Imaging
• Automatic Image Archiving - 25,000 images
• Image Review - Last 50 Images - New!
• Picture Perfect - New!
• Variable Contrast Level Control
• Dual 17" LCD Flat Panel Color Monitor

Standard Feature
Sensitivity 38 AWG
Resolution 1mm both vertical and horizontal
Penetration 29 mm steel
Contrast Sensitivity at least 24 levels visible as measured by a step wedge, 4096 gray level
; Video Displays ; Dual 17" LCD Flat Panel Monitors
Dose per inspection less than 0.1mR typical
Programmable Zoom 2X to 32X
; No pixel distortion ; Up to 8 times zoom
; Image manipulation ;; One monitor at a time
; Atomic Number Measurement ; Accuracy within 0.5 counts
Power Requirements ; 110-120 VAC, 50-60 Hz, 15 Amps max
220-240 VAC, 50-60Hz, 10 Amps max
Density Threat Alert Programmable Levels
UPS
Uninterrupted power supply) 		Shuts down computer 2 minutes after power failure
Automatic Image Archiving Up to 25,000 images in a rotating buffer
Manually save Image In windows format to view on personal computers or laptops
Print Image Any user-provided printer configurable by Win 2000
X-Ray Generator
Voltage 160 kVp
Filtering 3mm Al
Tube Current 0.7mA
Cooling Sealed oil bath
Duty Cycle 100%
Beam Direction Upward Vertically
Optional Accessories
Entry/ Exit Rollers (1.0m or 1.5m long)
Exit Table (1.0 m long)
Threat Image Projection (TIP)
  4 - level Security Access
Screener Training Program
Advance Image Archiving (100,000 images)
Remote Operator Workstation
Network Supervisor Station
  Inclined Conveyors
  Dual Speed Conveyors
  180 kv X-ray Generators
Available in 0.5m or 1.0m Conveyor Extensions
X-Ray Detector
2304 photodiodes in an "L" Shaped configuration
Physical Specifications
Weight Approximately 1400Kg
Tunnel Opening 1,016mm width X 1,016mm height
Conveyor Speed 13.7m/min
Construction steel frame on casters
Conveyor Height 762mm (30 in)
Conveyor Capacity 200Kg evenly distributed
Processor
At a minimum: Intel Pentium 4?, 2.8GHz Dual Core, 512MB RAM, 80GB HDD, 256MB VGA Dual DVI, UPS to support PC and electronics.
