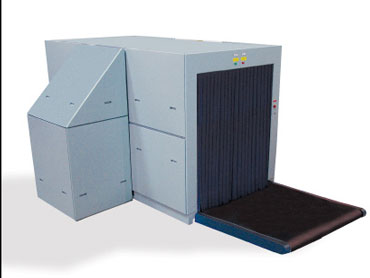

Baggage Screening : XIS-1517



A PC Based System
The XIS-1517 is a PC based system that incorporates latest electronic technology with an enhanced modular design. The XIS 1517 utilizes a high speed computer that implements advanced complex algorithms in real-time operation.

Ideal solution for the screening of large size luggage, parcels
The is the ideal solution for screening palette size containers for airport cargo applications. The tunnel opening of 150cm (59.0") wide by 170cm (67") high is designed to scan all airport cargo containers and clearly view them through its high resolution, high penetration display system. The control panel and imaging system of the XIS 1517 are ergonomically designed with operator comfort being an important feature of the system. The operator workstation is designed to be locally or remotely positioned relative to the x-ray machine.

Imaging Characteristics
• Black & White, Reverse Monochrome, & Pseudo Color
• Dual Energy Imaging System
• Geometrical Distortion Correction
• Color to Gray Scale Imaging
• Programmable Zoom 2X to 32X
• Edge Sharpening
• Programmable Penetration Levels
• Automatic Z measurement
• Operator Training Program
• Density Alert
• Organic & Inorganic Imaging
• Automatic Image Archiving - 25,000 images
• Image Review - Last 50 Images - New!
• Picture Perfect - New!
• Variable Contrast Level Control
• Dual 17" LCD Flat Panel Color Monitor

Standard Feature
Sensitivity 33 AWG
Resolution 1.5 mm both vertical and horizontal
Penetration 29 mm steel
Contrast Sensitivity at least 24 levels visible as measured by a step wedge, 4096 gray level
Dose per inspection 0.25mR typical
Power Requirements Single Phase, 220-240 VAC, 50-60Hz
X-Ray Generator
Voltage 180 kVp
Filtering 3mm Al
Tube Current 1.0mA
Cooling Sealed oil bath
Duty Cycle 100%
Beam Direction Upward Vertically
Optional Accessories
Entry/ Exit Rollers (1.0m or 1.5m long)
Exit Table (1.0 m long)
Threat Image Projection (TIP)
  4 - level Security Access
Screener Assist Threat Detection
; Screener Training Program
Advance Image Archiving (100,000 images)
Entry/Exit Roller extensions 320 KV 10mA/450 KV 10mA
Remote Operator Workstation
Network Supervisor Station
200 kv X-ray Generator
320 kv X-ray Generator
  450 kv X-ray Generator
3500 kgs Capacity Conveyors
X-Ray Detector
2304 photodiodes in an "L" Shaped configuration
Physical Specifications
Net Weight Approximately 3,050Kg
Gross Weight Approximately 3,380Kg
Tunnel Opening 1,700mm (67.0") width X 1,500mm (59.0") height
Conveyor Speed 6.0m/min (42 fps)
Conveyor Height 254mm (10.0")
Conveyor Capacity 1,000Kg evenly distributed
Processor
At a minimum: Intel Pentium 4?, 2.8GHz Dual Core, 512MB RAM, 80GB HDD, 256MB VGA Dual DVI, UPS to support PC and electronics.
