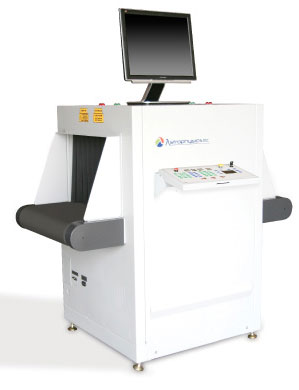

Baggage Screening : XIS-5335

A PC Based System
A PC based system that incorporates latest electronic technology to execute advanced algorithms in real time operations.

Design and developed for screening small parcels
The XIS 5335 is the ideal solution for inspecting small parcels for mail rooms, schools, airports, and commercial applications. The tunnel opening of 53cm (21") wide by 35cm (14") high is designed to meet most access control and mailroom applications. Our high resolution imaging display system. Designed with a high resolution X-Ray detector array to increase detection sensitivity and resolution and improve image presentation.

Imaging Characteristics
• Black & White, Reverse Monochrome, & Pseudo Color
• Dual Energy Imaging System
• Geometrical Distortion Correction
• Color to Gray Scale Imaging
• Programmable Zoom 2X to 32X
• Edge Sharpening
• Programmable Penetration Levels
• Automatic Z measurement
• Operator Training Program
• Density Alert
• Organic & Inorganic Imaging
• Automatic Image Archiving - 25,000 images
• Image Review - Last 50 Images - New!
• Picture Perfect - New!
• Variable Contrast Level Control
• 17" LCD Flat Panel Color Monitor

Designed to be Networked
The XIS 5335 is designed to be networked with other inspection systems for high speed data transmission via Ethernet. It uses a Windows 2000 based operating system running a TCP/IP network protocol system. Images from each XIS 5335 can be sent through the network to a central server where they are viewed, stored, or printed.

Standard Feature
Sensitivity 40 AWG
Resolution 1mm both vertical and horizontal
Penetration 10mm
Contrast Sensitivity at least 24 levels visible as measured by a step wedge, 4096 gray level
Image display Color, organic, inorganic, black & white, reverse monochrome, and pseudo color
Video Displays 17" LCD Flat Panel Monitors
Dose per inspection 0.1mR typical
Tunnel Opening 530mm (21") wide by 350mm (14") high
Conveyor Speed 0.23m per sec (45' per min)
Power Requirements 110-120 VAC, 50-60 Hz, 15 Amps max
220-240 VAC, 50-60Hz, 10 Amps max
Density Threat Alert Programmable Levels
UPS
Uninterrupted power supply) 		Shuts down computer 2 minutes after power failure
Automatic Image Archiving Up to 25,000 images in a rotating buffer
Manually save Image In windows format to view on personal computers or laptops
Print Image Any user-provided printer configurable by Win 2000
X-Ray Generator
Voltage 90 kVp
Tube Current 0.7mA
Cooling Sealed oil bath
Duty Cycle 100%
Beam Direction Upward Vertically
Optional Accessories
Entry/ Exit Rollers (0.5M, 1.0m or 1.5m long)
Exit Table (1.0 m long)
Threat Image Projection (TIP)
  4 - level Security Access
Screener Assist Threat Detection
Screener Training Program
Advance Image Archiving (100,000 images)
Remote Operator Workstation
Network Supervisor Station
Dual 17" LCD Flat Panel Monitor
X-Ray Detector
1024 photodiodes in an "L" Shapped configuration
Physical Specifications
Weight Approximately 500 Kg
Shipping Weight Approximately 550 Kg
Processor
At a minimum: Intel Pentium 4?, 2.8GHz Dual Core, 512MB RAM, 80GB HDD, 256MB VGA Dual DVI, UPS to support PC and electronics.
