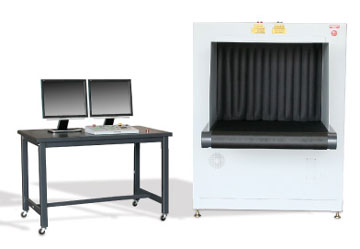

Baggage Screening : XIS-7858

A PC Based System
A PC based system that incorporates latest electronic technology to execute advanced algorithms in real time operations.

Design and developed for screening small parcels
The XIS 7858 is the ideal solution for screening small parcels for airport, government and commercial applications. The tunnel opening of 775mm (30.5") wide by 575mm (22.6") high is designed to scan most parcels and hand carried luggage and clearly view them through its high resolution display system.

Imaging Characteristics
• Black & White, Reverse Monochrome, & Pseudo Color
• Dual Energy Imaging System
• Geometrical Distortion Correction
• Color to Gray Scale Imaging
• Programmable Zoom 2X to 32X
• Edge Sharpening
• Programmable Penetration Levels
• Automatic Z measurement
• Operator Training Program
• Density Alert
• Organic & Inorganic Imaging
• Automatic Image Archiving - 25,000 images
• Image Review - Last 50 Images - New!
• Picture Perfect - New!
• Variable Contrast Level Control
• Dual 17" LCD Flat Panel Color Monitor

Designed to be Networked
The XIS 7858 is designed to be networked with other inspection systems for high speed data transmission via Ethernet. It uses a Windows 2000 based operating system running a TCP/IP network protocol system. Images from each XIS 7858 can be sent through the network to a central server where they are viewed, stored, or printed.

Video Display
Dual 17" Flat Panel LCD monitor.

Standard Feature
Sensitivity 42 AWG
Spatial Resolution 1mm for both vertical and horizontal
Penetration 30mm steel
Tunnel Opening 775 mm (30.5 in) wide x 575 mm (22.6 in) high
Contrast Sensitivity At least 24 levels visible as measured by a step wedge, 4096 gray scale levels
Power Requirements 110-120 VAC, 50-60 Hz, 15 Amps max
220-240 VAC, 50-60Hz, 10 Amps max
Video Displays Dual 17" LCD Flat Panel Monitors
Programmable Zoom 2X to 32X
No pixel distortion Up to 8 times zoom
Image manipulation One monitor at a time
Atomic Number Measurement Accuracy within 0.5 counts
UPS
Uninterrupted power supply) 		Shuts down computer 2 minutes after power failure
Automatic Image Archiving Up to 25,000 images in a rotating buffer
Manually save Image In windows format to view on personal computers or laptops
Print Image Any user- provided printer configurable by Win 2000
X-Ray Generator
Voltage 160 kVp tube
Cooling Sealed oil bath
Duty Cycle 100%
X-Ray Detector 1664 photo diodes in an "L" shaped configuration
Optional Accessories
Entry/ Exit Rollers (1.0m or 1.5m long)
Exit Table (1.0 m long)
Threat Image Projection (TIP)
  4 - level Security Access
Screener Assist Threat Detection
Screener Training Program
Advance Image Archiving (100,000 images)
Remote Operator Workstation
Network Supervisor Station
  Inclined Conveyors
180 kv X-ray Generator
Environmental Conditions
Operating Temperature 0?C to 45?C
Storage Temperature -20?C to 60?C
Humidity less than 95% non-condensing
Physical Specifications
Weight Approximately 1250 kgs
Shipping Weight Approximately 1375 kgs
Processor
At a minimum: Intel Pentium 4?, 2.8GHz Dual Core, 512MB RAM, 80GB HDD, 256MB VGA Dual DVI, UPS to support PC and electronics.
