Walk-Through Metal Detectors
PD 6500i

The PD 6500i is the world's highest performing walk-through metal detector and leads the industry with superior pinpoint technology and unmatched discrimination and sensitivity features. Designed for maximum patron throughput without compromising safety, the PDi is the walk-through of choice for security professionals worldwide.
Easy Assembly
The PD 6500 i 's modular design allows for a quick and simple assembly of its 4 (four) sub-assemblies using only 8 (eight) screws and 3 (three) internal electrical connections.

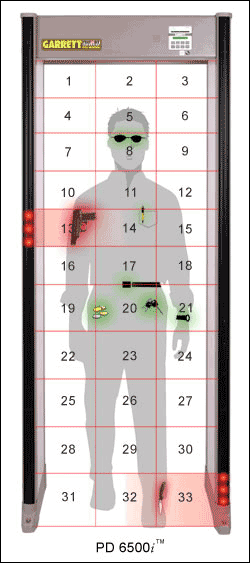

33 Distinct Pinpoint Detection Zones
The PD 6500 i offers exclusive multiple target pinpointing with 33 distinct zones for full target coverage on the left, center and right side of the body from head to toe.
Entry Pacing Lights
Smooth, efficient traffic flow with easy-to-view, eye-level pacing lights with international "wait" and "proceed" symbols on the entrance side of each panel.
Overhead Control Unit
LCD Display, alarm lights, LED bar graphs and control touchpads plus all wiring, connections and electronics are integrated into a single lockable overhead compartment which eliminates exposure of wires and external control box.
Multi-dimesional Coil Design
The PD 6500 i 's exclusive multi-dimensional coil design provides unmatched detection of potentially lethal metal items such as guns, knives and other flat and rod-shaped weapons regardless of location and orientation.
Audible and Visual Alarms
Audible alarm and Visual LED lights signal when a target has been detected.

The PD 6500i's Access Control Panel is designed for use by authorized personnel with specific, multi-level security codes. It allows authorized users to change settings such as detection Program and Sensitivity. Security of the detector's settings is maintained with a non-resettable sequence code, which indicates every attempt at access to the settings. A tamper alarm sounds within 10 seconds after the Access Touchpad is pressed, unless a proper access code is entered.

The PD 6500i maintains all settings even when disconnected from power and does not require recalibration each time the unit is turned OFF and back ON. No battery is required for memory retention. While the unit is in operation, a self-test of all systems is performed continuously with any failures or problems immediately reported on the LCD display.

Specifications:

  • Operating Temperatures
    -4?F (-20?C) to + 158?F (70?C); Humidity: To 95% non-condensing

  • Power
    Fully automatic 100 to 240 VAC, 50 or 60 Hertz, 5 watts; no rewiring, switching or adjustments required. Power supply meets UL, CSA, TUV and VDE standards.

  • Weatherproofing / Foreign Object Protection Standards
    Meets IP 55, IEC Standard. "Degrees of Protection provided by Enclosures," IEC 529.

  • Tamper-Proof
    All settings are secured with a key lock and two levels of access codes. Further security is accomplished with a cabinet lock which prevents unauthorized access to physical cables, connectors and electronics.

  • Construction
    Attractive scratch and mar-resistant laminate. Detection Heads and Support: Heavy duty aluminum.

  • Control Outputs
    Solid state switches (low voltage AC or DC) for operating external alarms and control devices.

  • Traffic Counter
    Counter tracks the number of patrons that have passed through the detector, the number of alarms and calculates alarm percentage.

  • Synchronization
    Dual channels and DSP circuitry allow several PD 6500i's to operate simultaneously in close proximity to one another.

  • Interference Suppression
    Special Garrett DSP built-in circuitry eliminates effects from x-ray monitors and other potential electrical interference sources.

  • Programs
    Sixteen (16) independent programs designed to meet all installation-specific requirements including the new Enhanced Metal Detector (EMD) requirements for U.S. airports.

  • Alarms
    Audible tone and volume adjustable. Bright LED visual alarm.

  • Target Pinpointing Lights
    Thirty-three (33) distinct zones are displayed with two (2) independent columns of LED's located on exit side of PD 6500i.

  • Pacing Lights
    International symbols

  • Warranty
    Limited 24 months, parts and labor

  • Dimensions
    Interior Overall Exterior Shipping
    Width 30" (0.76 m) 35" (0.9 m) 35.5" (0.9 m)
    Height 80" (2 m) 87" (2.2 m) 92" (2.3 m)
    Depth 23" (0.58 m) 23" (0.58 m) 6.5" (0.17 m)
