Walk-Through Metal Detectors

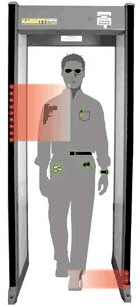

PD 6500i

• Superior target detection with unmatched discrimination of harmless items such as coins, jewelry, keys, cigarette packs, etc.

• The ultimate in safety, throughput and reliability with preset programs to cover the most complete range of security applications including the new Enhanced Metal Detector (EMD) required for all U.S airport installations.

• Multi-dimensional coil design (33 distinct pinpoint zones) provides superior detection and location of guns, knives and other flat and rod-shaped weapons regardless of orientation.

• Circuitry with advanced Digital Signal Processor (DSP) technology locates even small, hard-to-find, floor level weapons.

• Individual zone boost adjustments allow for customization of detection characteristics and/or compensation for metallic environmental challenges.

• Durable, IP 55 weather-proof construction.



• One switch operation
• Ultimate sensitivity
• Does not require adjustments
• Rugged, high-impact ABS case with reinforced coil compartment
• Detects medium sized pistol from 9"; large knife from 6"; razor blade and box cutter from 3"; foil-wrapped drugs and tiny jewelry from 1"
• Large 10" scan surface for quick, thorough scanning
• No tools required to change 9V battery

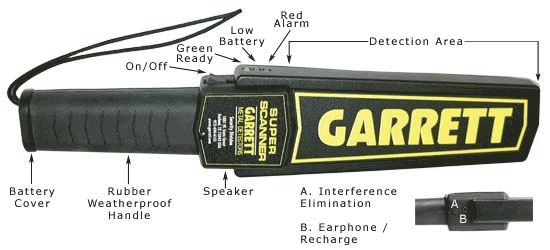

• Sharp audible alarm and bright red LED light indicates the detection of metal
• Momentary push button temporarily eliminates detection of nearby ambient metal such as rebar, metal walls, etc.
• Green LED light indicates ON; Amber LED indicates low battery; Red LED indicates ALARM

Specifications

• Operating Temperatures -35'F ( -37'C ) to 158'F ( 70'C )
• Humidity To 95% non-condensing
• Operating Frequency 93 kHz
• Audio Frequency 2kHz Warble
• Tuning Automatic
• Indicators Speaker LED Alert Lights
  Green : Power On
  Amber : Battery LOW
  Red : ALARM condition
• Controls
  Power switch ( ON / OFF )
  Interference Elimination Momentary Switch
• Battery
  Single 9 volt battery provides up to 60 hours of normal operation. Optional NiMH rechargeable battery provides up to 20 hours on each 12-hour recharge
• Dimensions
  Width : 3.25" (8.3 cm)
  Thickness : 1.625" (4.13 cm)
  Length : 16.5" (42 cm)
  Weight : 17.6 oz. (500 g)
